Description
ISO DIN 13 coarse pitch
Processed Materials
< 500 N/mm²
< 850 N/mm²
< 1200 N/mm²
< 600 N/mm²
< 850 N/mm²
Duplex
< 240 HB
< 300 HB
< 10% Si
> 10% Si
Bass Copper
Bronze >700 N/mm²
Ti6Al4V
HTA
< 45 HRC
< 60 HRC
C
C+Ti
C+AL
Fully compatible
Partially compatible
Product specifications
| Technical Code | A2104 |
|---|---|
| Brand Name | KERFOLG |
| Tolleranza | 6H ISO 2 |
| Surface finish | TiN |
| Thread depth | 3XD |
| Hole type | Through |
| Chamfer form | B 4/5 |
| Application | Taps for universal applications. For almost all materials. |
| HSSE | |
| Thread type | DIN13 - M |
| Steel | |
| Stainless steel | |
| Cast iron | |
| Non ferrous | |
| Material | HSSE |
| Shank type | DIN 371 DIN 376 |
| Thread range | M2-M30 |
| Chamfer form and length | B 4/5 |
| Hole type | HOLE TYPE - Through - NoTxt |
| Hand rotation | RH |
| Tolerance | ISO2-6H |
| Coating | TiN |
| Tool type | Cutting Tap |
Need more information for this product?
A2104

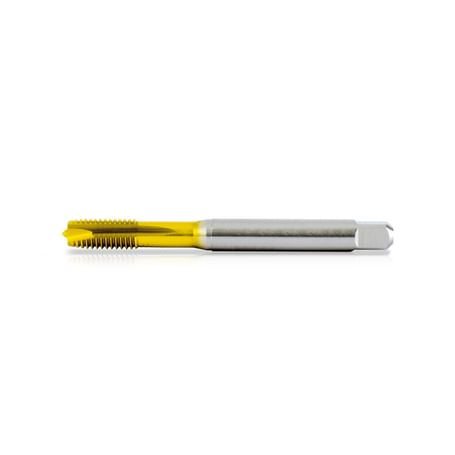

Spiral point taps for through-holes KUT M KERFOLG
