Details

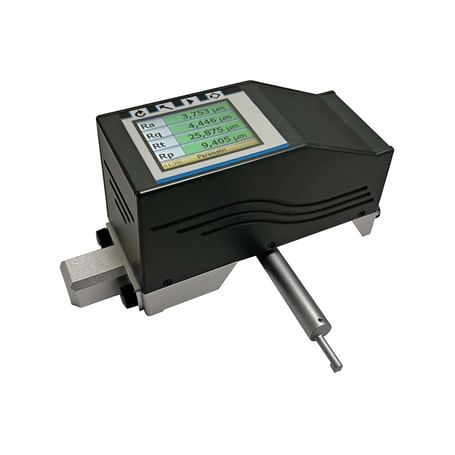

Face Test 25 roughness is a highly-versatile hand-held device. Suitable for both horizontal and vertical measuring, 90°, V-shaped, flat surfaces, internal and external diameters, mounted on stand supports. Gauss filter, 8 parameters, ISO 4287 compliant (Ra, Rq, RMS), Rt, Rz, Rc, Rmax, Rsm, Rpc, 5 parameters ISO 12085 compliant (Pt, R, AR, Rx, PPL), profile and capacity curve data transmission to the printer (printer supplied as optional). Output connection to PC with advanced computing program (optional) and graphs printing, new electronics with large display, 0,001 µm resolution, Z400/mm measurement range designed for higher friction coefficient measurements (sanding, embossing etc.). Supplied with standard tester, roughness samples and instruction manual. Face test 25 plus may also mount special interchangeable testers as well as extensions for depth drilling measurement. Basic software and USB cable are included.
Optional
- ST1 stand with granite plate 300 x 200
Specifications
Downloadables
-
USCITA DATI
-
Millesimal measurement 0,001
-
Large LCD display
-
Hard case
- Product code
- D7241
