Description
Scale measurement range: Leeb and scales HL, HB, HRB, HRC, HV, HS, σb.
Measuring range: HLD (200-960) - HRC (19.8-68.5) - HRB (13.5-100) - HB (30-651) - HV (80-976) - HS (26.4-99.5) - σb (375-2639), with D type probe (Standard). Accuracy: ± 6 HLD (HLD=800), repeatability < 6 HLD (HLD=800). Impact direction: 360° selectable. Materials: iron, cast iron, stainles steel, aluminium, etc. Minimum measurable piece weight: 5 Kg. Display: luminated LCD display in english. Memory: 100 groups. USB connection (Standard) with software included and 2 1.5V AA type batteries.
Standard GB/T 17394-1998, ASTM A956.
Measuring range: HLD (200-960) - HRC (19.8-68.5) - HRB (13.5-100) - HB (30-651) - HV (80-976) - HS (26.4-99.5) - σb (375-2639), with D type probe (Standard). Accuracy: ± 6 HLD (HLD=800), repeatability < 6 HLD (HLD=800). Impact direction: 360° selectable. Materials: iron, cast iron, stainles steel, aluminium, etc. Minimum measurable piece weight: 5 Kg. Display: luminated LCD display in english. Memory: 100 groups. USB connection (Standard) with software included and 2 1.5V AA type batteries.
Standard GB/T 17394-1998, ASTM A956.
Product specifications
Technical Code | D7216 |
---|
Need more information for this product?
D7216

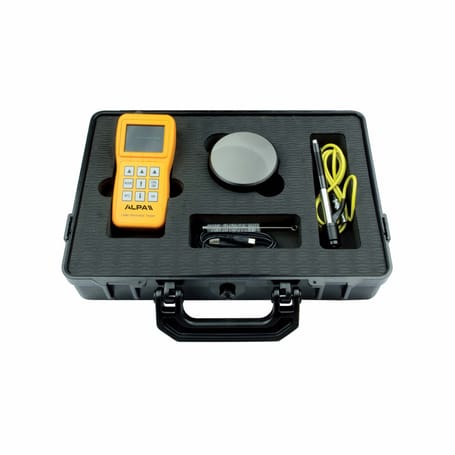

Leeb Impact hardness testers with repeatability
