Description
ISO thread DIN 13 coarse pitch
Processed Materials
< 500 N/mm²
< 850 N/mm²
< 1200 N/mm²
< 600 N/mm²
< 850 N/mm²
Duplex
< 240 HB
< 300 HB
< 10% Si
> 10% Si
Bass Copper
Bronze >700 N/mm²
Ti6Al4V
10/15
HTA
< 45 HRC
< 60 HRC
C
C+Ti
C+AL
Fully compatible
Partially compatible
Product specifications
| Technical Code | A2358 |
|---|---|
| Brand Name | KERFOLG |
| Tolerance | 6HX |
| Surface finish | PREMIUM |
| Thread depth | ≤ 3XD |
| Hole type | Blind and through |
| Chamfer form | C 2/3 with coolant groove |
| Application | Carbon and stainless steel up to R ≤ 800 N/mm², aluminum alloys with silicon ≤ 7% |
| PM | |
| Thread type | DIN13 - M |
| Steel | |
| Stainless steel | |
| Non ferrous | |
| Super alloys | |
| Material | PM-K |
| Shank type | DIN 2174 (371-376) |
| Thread range | M2-M16 |
| Chamfer form and length | C 2/3 |
| Hole type | HOLE TYPE - Blind-Through - NoTxt |
| Hand rotation | RH |
| Tolerance | 6HX |
| Coating | TiN |
| Tool type | Forming Tap |
| Coolant | Oil grooves |
Need more information for this product?
A2358

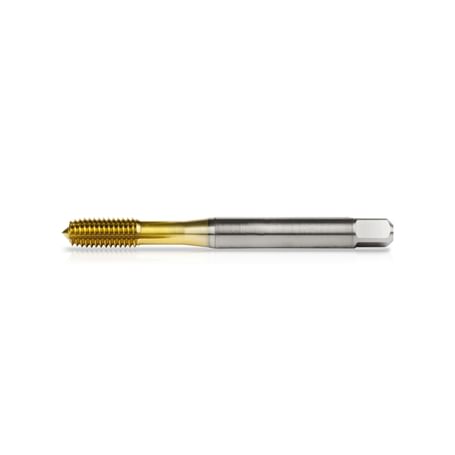

Forming tap for blind and through-holes KPT M KERFOLG
