Description

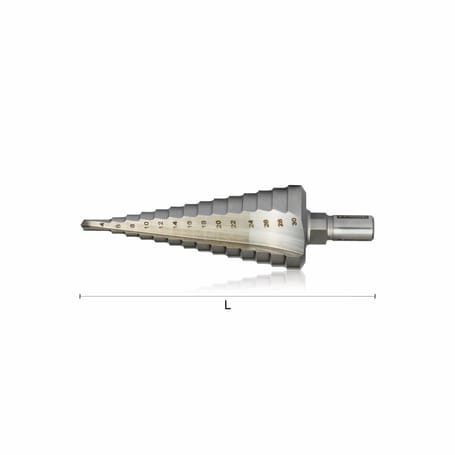

Conical step drills PREMIUM QUALITY in HSS steel with high surface resistance, suitable for drilling ferrous materials, aluminium, copper and plastic with thicknesses of up to 5 mm. Dimensions of the drilling diameters laser engraved on the groove and cylindrical shank with driving planes.
Product specifications
| Technical Code | N5227 |
|---|---|
| Brand Name | WODEX |
| N522713A - WX7550/13A | Ø 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 mm |
| N522722A - WX7550/22A | Ø 4 - 7 - 10 - 13 - 16 - 19 - 22 mm |
| N522723A - WX7550/23A | Ø 5 - 8 - 11 - 14 - 17 - 20 - 23 mm |
| N522724A - WX7550/24A | Ø 6 - 9 - 12 - 15 - 18 - 21 - 24 mm |
| N522724B - WX7550/24B | Ø 6 - 8 - 10 - 12 - 14 - 16 - 18 - 20 - 22 - 24 mm |
| N522730A - WX7550/30A | Ø 4 - 6 - 8 - 10 - 12 - 14 - 16 - 18 - 20 - 22 - 24 - 26 - 28 - 30 mm |
| N522740A - WX7550/40A | Ø 7 - 10.5 - 12.5 - 14.5 - 16.5 - 18.5 - 20.5 - 23.5 - 25.5 - 30.5 - 34 - 38.5 - 40.5 mm |
| N522742A - WX7550/42A | Ø 6 - 10 - 14 - 18 - 22 - 26 - 30 - 34 - 38 - 42 mm |
| N522744A - WX7550/44A | Ø 8 - 12 - 16 - 20 - 24 - 28 - 32 - 36 - 40 - 44 mm |
| N522745A - WX7550/45A | Ø 9 - 13 - 17 - 21 - 25 - 29 - 33 - 37 - 41 - 45 mm |
| N522750A - WX7550/50A | Ø 9 - 13 - 17 - 21 - 25 - 29 - 33 - 37 - 41 - 45 - 50 mm |
| N5227PG - WX7550/PG | Ø 6 - 9 - 12.5 - 15 - 18.6 - 20.5 - 22.5 - 26 - 28.5 - 30.5 - 34 - 37.5 mm |
Need more information for this product?
N5227
Conical step drills WODEX WX7550
